Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

Name: Low Bed Trailer 3 axles 80T lowbed trailer 4 axles 80T lowbed trailer
Brand: FUDENG Brand Low bed trailer
Price: 1 USD

Quality Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer wholesale

Brand Name : FUDENG Brand Low bed trailer

Model Number : SDFDZH040840

Certification : ISO , SGS , CE , CCC

Place of Origin : Shandong China(Mainland)

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 900 Units Per Month

Delivery Time : 20 - 30 work work days after deposit

Packaging Details : By Bulk Cargo Ship, Ro-ro Ship

Max Payload : 80ton

Axle : 3 / 4 axle , BPW or FUWA

Landing gear : 28ton

Material : High strength steel

Suspension : Air or Mechanical

Ladder : Hydraulic / Mechanical

Condition : New

Kingpin : 2.0'' or 3.5'' , JOST

Price : negotiation

Contact Now

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

The loader with spring can easily lift up and lay down . Just one person can deal with ladder. It's much convient for the transporting work . And for this ladder is welding together by the high strength steel , it' much stronger than the normal type which will make sure the safety of the loading .

The high strength steel made main beam will make sure of the safety of the transport also both the semi trailer together with the machine wich will be transported .

Specification

Specification
Body
Dimension	13.5m×3.0mx1.6m
Payload	80T
Tare weight	About 10T
Bottom Platform	4 mm Checkered Thickness
Main beam	Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper plate is 18mm,lower plate is 20mm, middle plate is 10mm. height of main beam is 500 mm
Side beam	Welding design I beam. Height is 200mm.
Through beam	14# Channel
Ladder	Mechanical
Suspension	Air Suspension
Chassis
Axle	3 axles, 13 T
Landing Gear	28T Linkage style
King Pin	2.00 or 3.5 inch bolt-in king pin
Pneumatic Braking System	6 big air chamber, 3 axles synchronization valve
Rim	8.5-20*12pcs
Tyre	12.00R22.5 or 11.00R20*12pcs
Accessories	One standard tool box
Spare tire rack	One
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO

For the transportation of this low loader transport trailer , we have verious options . For examply , the normal transportation type is the bulk cargo or RORO which will be beter for the sea transport , but it will be much higher.

If the customer accept , we can cut the head of the trailers and then charge it into the flat rack . Also we can arrage another type of the low bed trailer to char into the container , which means that the lowbed trailer will be a little smaller but we can promise that the trailer is in a good condition and use normally .

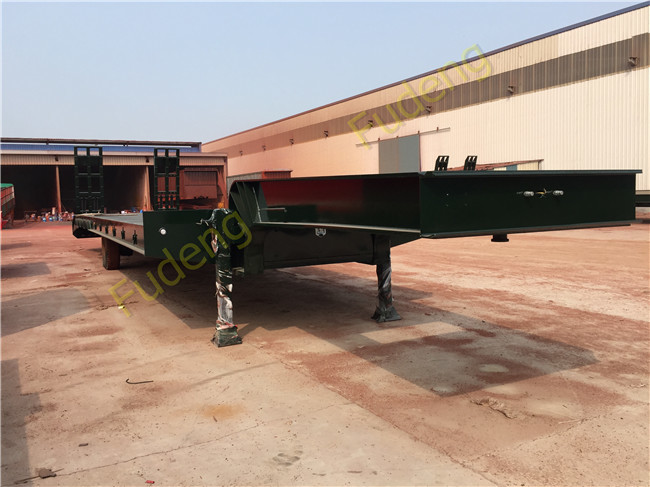

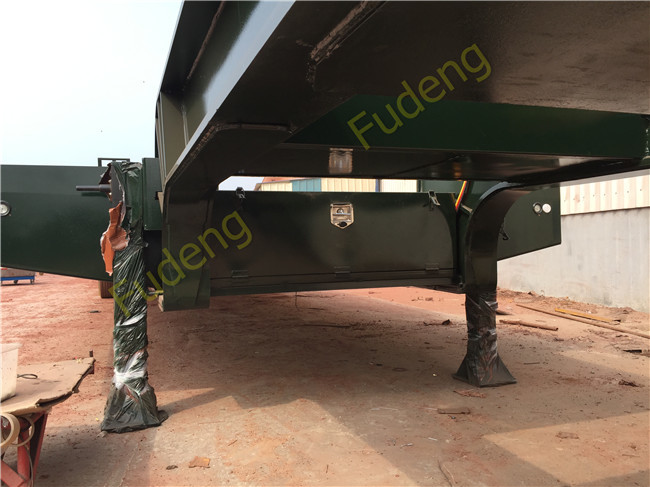

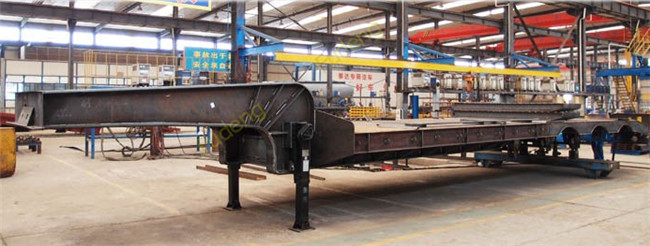

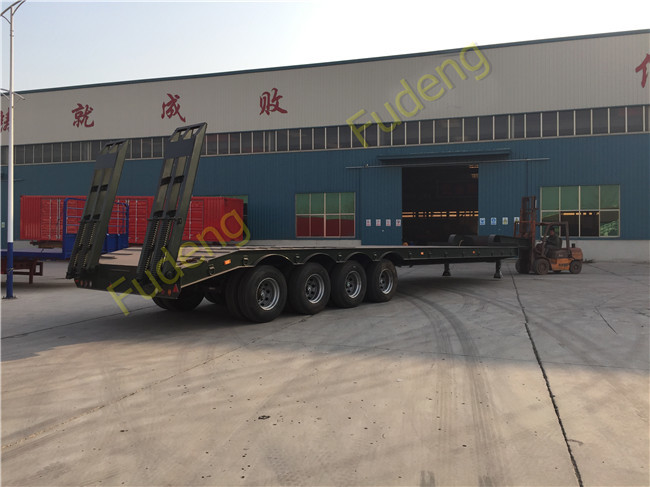

Details - - 4 axle 80 ton low bed semi trailer

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

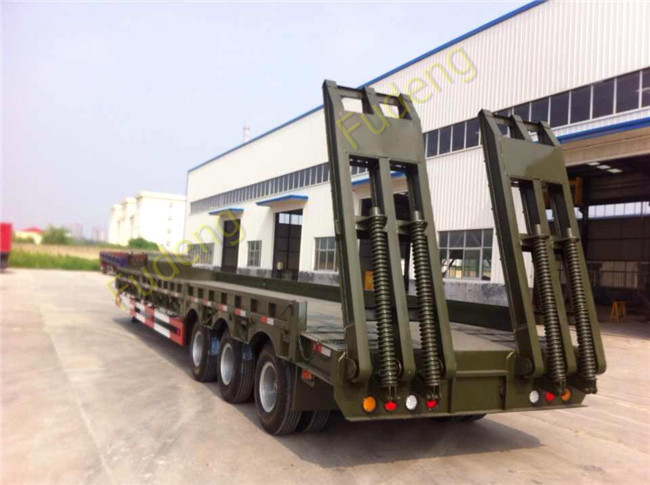

Details - - 3 axle 80 ton low bed semi trailer

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
