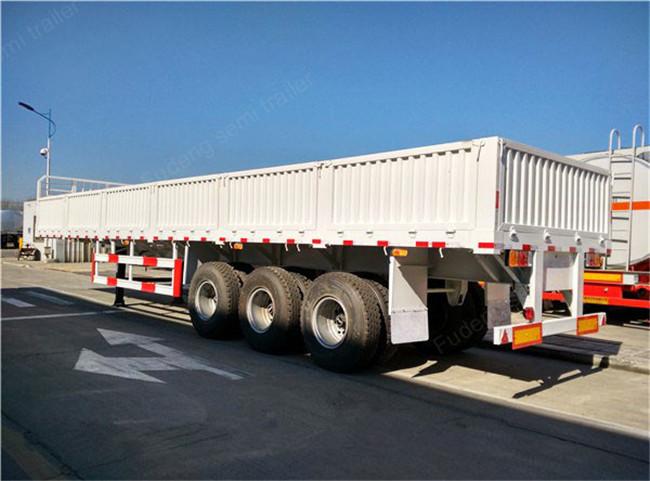

Container Side wall semi trailer 20ft & 40ft cargo semi trailer with twist lock
The side wall semi trailer mainly used for transporting the bulk cargo and the
goods in bags or box . It's widly used in many different countries for all kinds of product
transportation like container and bulk cargo .
Presale Service:
Professional design team supply personalized service according to customer’s demand. Ensuring the maximum precision, the professional engineer will review the drawings again before production.
AftersaleService:
Regularly callback aid us to know vehicles working status.Depending on this, the company can offer reasonable tech proposals. Timely parts supply guarantee vehicles work continuously. The overseas engineer is in ready all the time against unexpected needs.
3 Axle Side Wall Cargo Truck Trailer ------- Specification
| Rmark | The specification just for your reference, we can bulid trailer as your specific requirements |
| Dimension | 8000mm-16000mm x 2000-3500mm x 1650 mm (Standard or Customized ) |
| Loading Capatity | 20 T - 60 T |
| Axle | 13T/16T, BPW/FUWA/Chinesebrand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Tri-axle Mechanical suspension or Air Suspension (Chinese brand or BPW brand) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded type) |
| Landing Gear | JOST brand or Chinese brand 28 Tons |
| Main Beam | Height:450mm-580mm Q354B steel |
| Gooseneck | Optional |
| BrakeChamber | WABCO (brake system) |
| ABS | Optional |
| Light | LED light |
| Voltage | 24V |
| Socket | 7-Pin Socket |
| Surface Coating | Sandblasted, anti-rust chassis surface is avaible with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Customization | Customized heavy duty low bed trailer Available , this specification just for you reference |

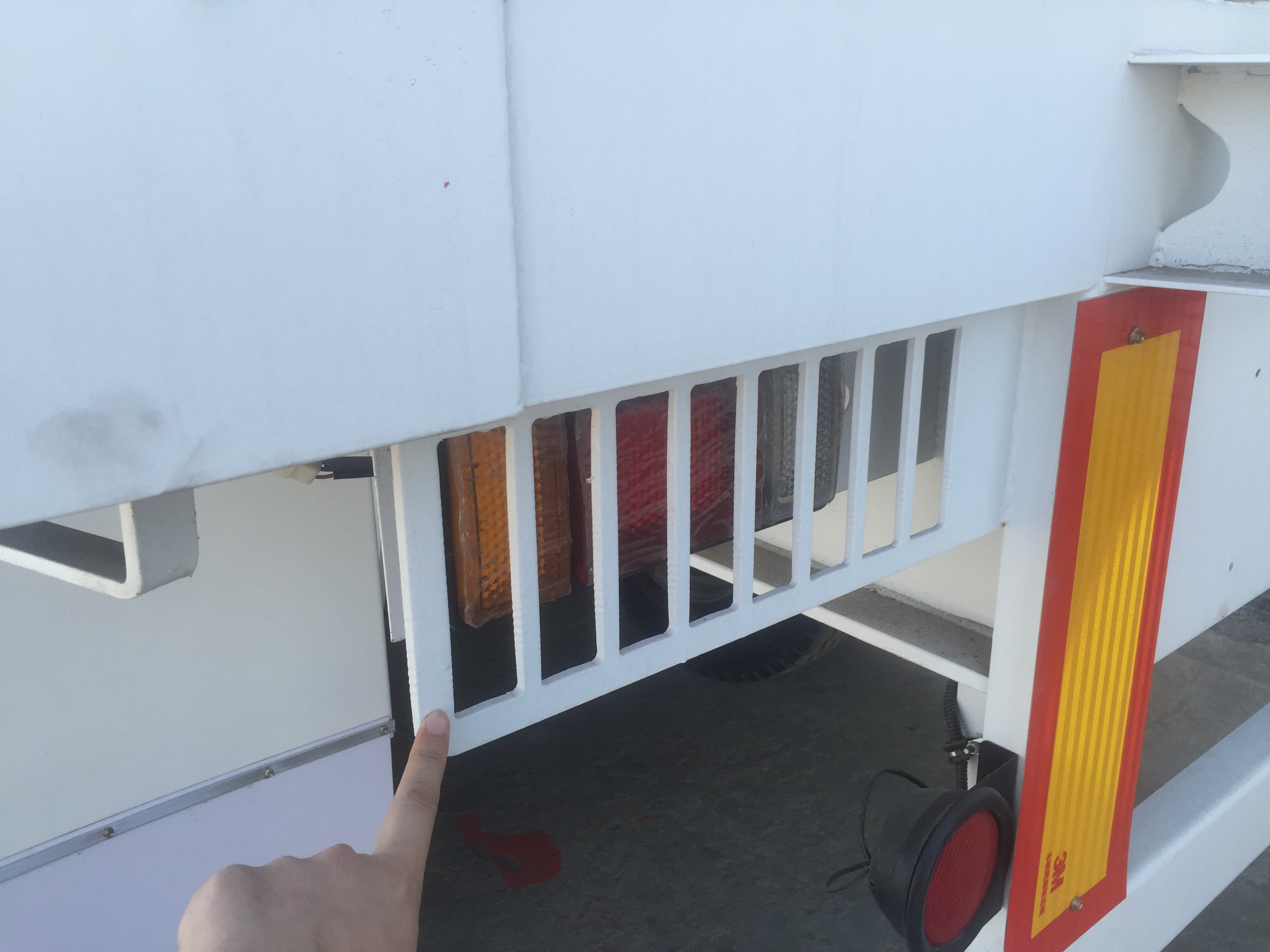

Detail

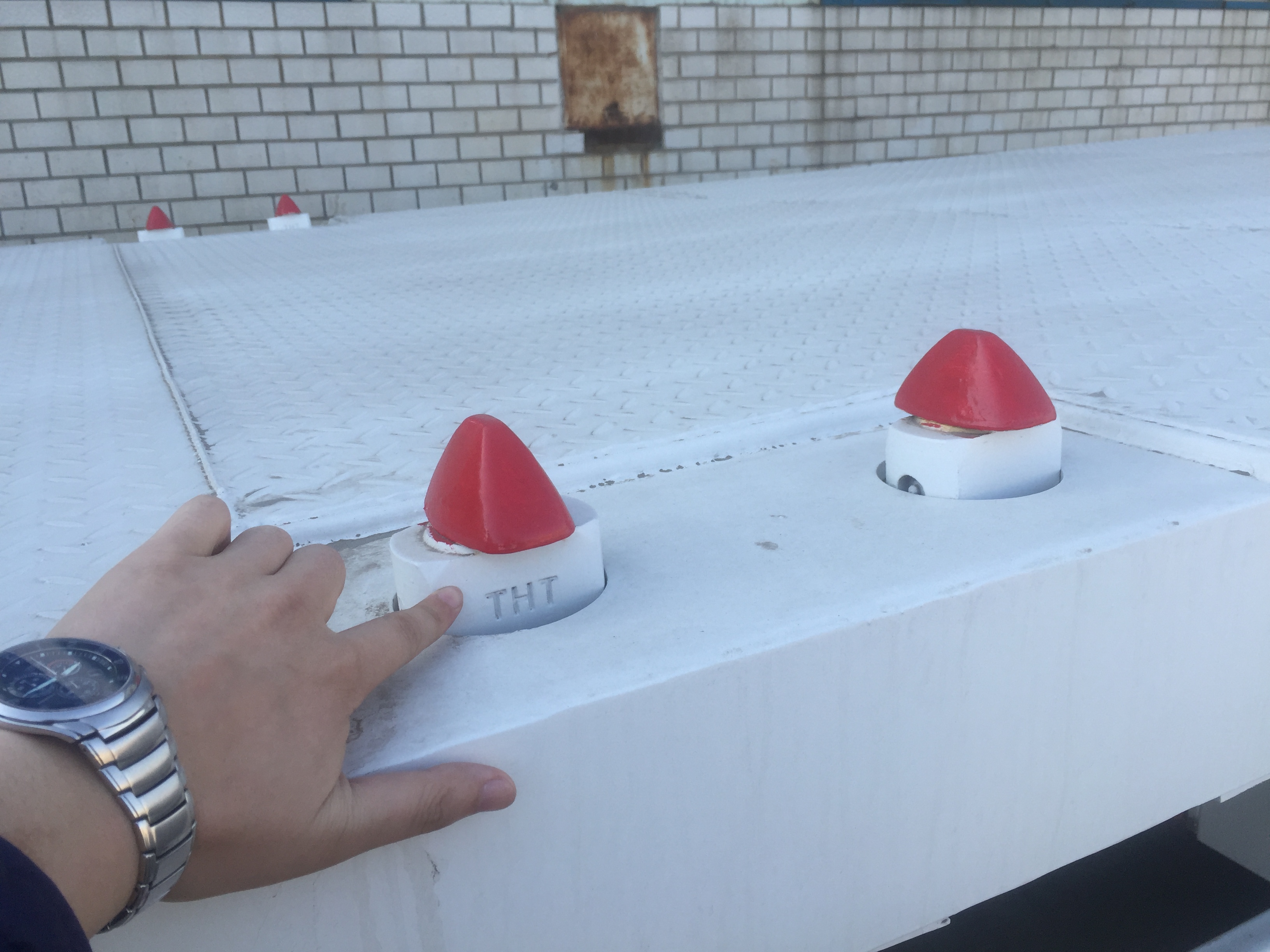

Famous brand container lock
Packaging & Shipment
1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
2. Cut the rear part which can load two sets in one 40ft container ;
3. Keep the trailer original but load two sets in one 45ft container .
