Cattle transport trailer / side wall semi trailer / animal delivery trailers

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Name: Cattle transport trailer side wall semi trailer animal delivery trailers
Brand: Fudeng
Price: 1 USD

Brand Name : Fudeng

Model Number : FDZH330411

Certification : CE , CCC , ISO9001 , etc .

Place of Origin : Shandong,China

MOQ : 1 set

Payment Terms : L/C, T/T,, Western Union

Supply Ability : 80 sets cattle semi trailer per week

Delivery Time : 20-30 work days after 30% deposit

Packaging Details : Nude packing. Bulk cargo or RORO shipping

Axle : BPW or FUWA brand

King pin : 50# or 90#

Size : Buyer's Request

Landing Gear : 28ton

Brake System : WABCO

Keywords : Cattle trailer

LOGO : As your request

Warranty : 2 year

Price : negotiation

Contact Now

Cattle transport trailer / side wall semi trailer / animal delivery trailers

According your needs,wo can choose BPW axle or FUWA axle,air suspension or leaf spring suspension.We adopt 6 big double air chamber.

We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.

Specification

3 axle Cattle semi trailer
General
Overall dimension(MM)	1300025003600(mm)
Function	Transport cargo like animal, vegetable
Loading weight (KG)	40,000
Tare weight(KG)	7000
Wheel base(MM)	8580+1310+1310
Running gear
Axle brand	FUWA 13T axle
Axle number	Three
Suspension system	Leaf spring suspension
Leaf spring	10/10/10
Tire type and quantity	11R22.5 12pcs
Brake system	Dual line system
Brake air chamber	Six big double air chamber
Under Frame
Main beam(MM)	height:500; upper plate: 14; down plate: 16; middle plate: 8;
Thickness	Bottom:3mm; side:1.5mm
King pin	50mm(2'') or 90mm(3.5'')
Landing gear	28T standard
Appedix	tool box	(1.4-1.6)m0.5m0.5m with One set
	spare wheel bracket	Two
Electrical& others
Elecitric system	1.Voltage: 24V 2. Receptacle: 7 ways( 7 wire harness)
	Tail lamp with turm signal, brake light& refector and side lamp
	One set 6-core standard standard cable
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Packing	Nude, polish with wax before shipping
Shipping	Transfer to Qingdao port and carry by container ship.

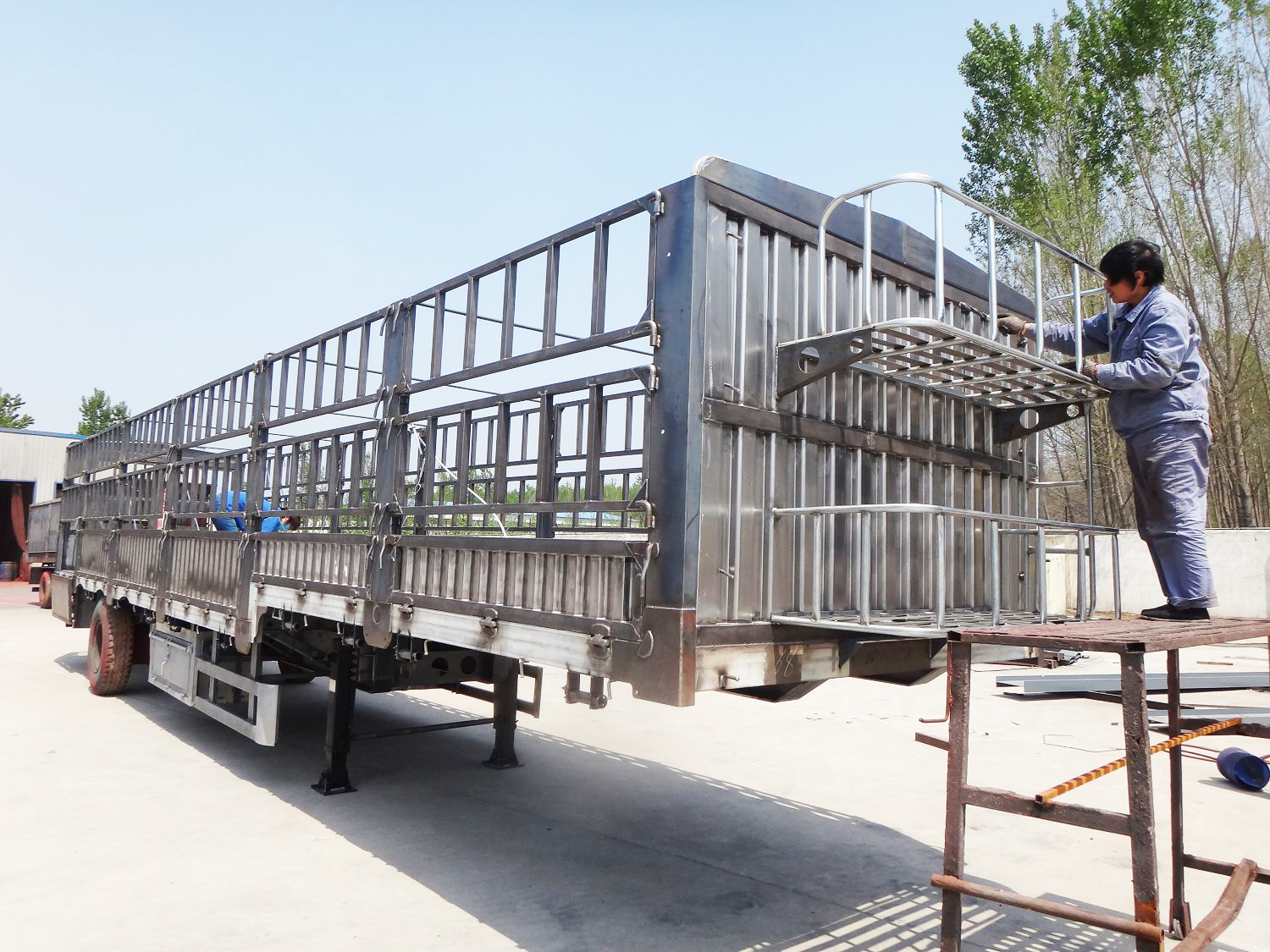

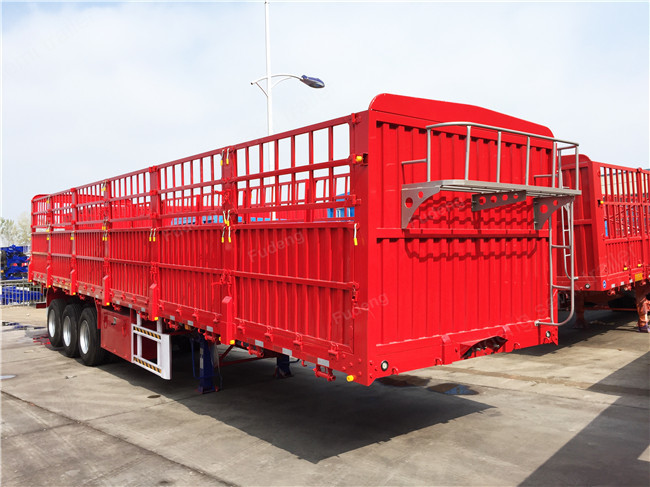

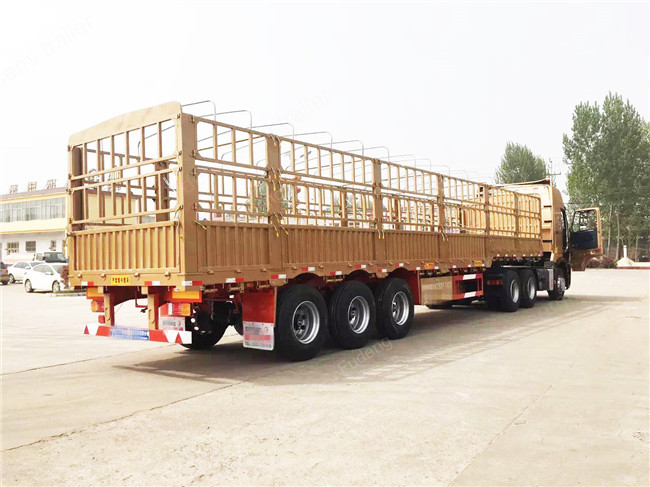

Pictures

Cattle transport trailer / side wall semi trailer / animal delivery trailers

24 HOURS online services

Regularly callback to know the vehicle’s working status.

Timely parts supply guarantee vehicles work continuously.
